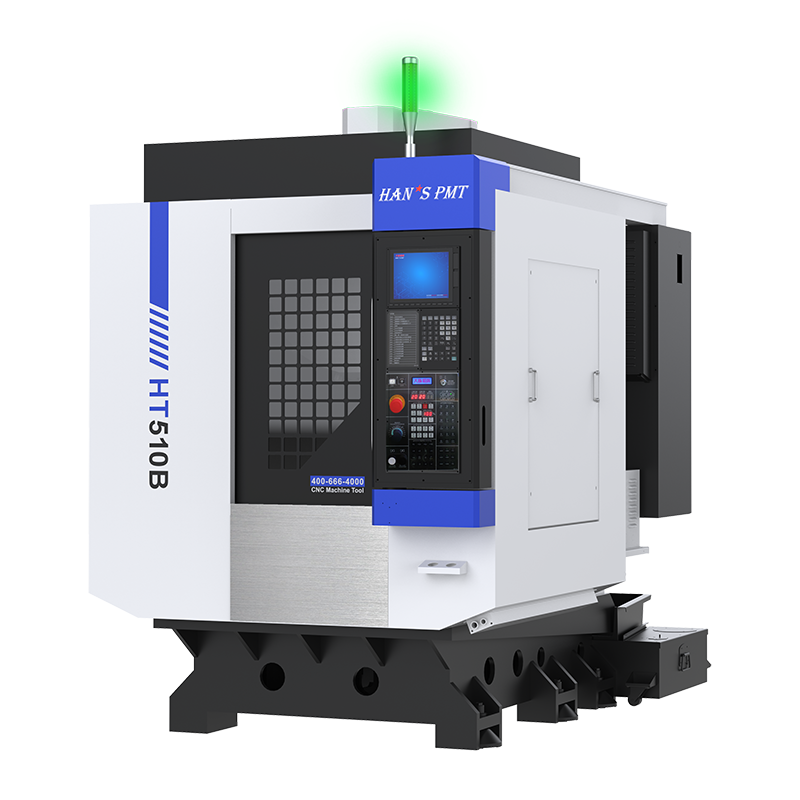

HT510B

Application Industry

Precision drilling and milling processing/3C industry parts processing/New energy vehicle parts processing/Precision mold processing/Medical industry parts processing/Aerospace industry parts processing/Other precision parts processing

Standard configuration

Mitsubishi M80

Front servo tool magazine

Fully enclosed protective cover

Automated central lubrication system

Tool kit

Foundation bolts&pads

Selected configurations

SINUMERIK 828D/FANUC

The 4th axis

Z-axis heightened

Large tool magazine

Wireless probe

Tool breakage detection system

Consultation

Technical Specifications

ltem	Description	Unit	Mitsubishi M80	SINUMERIK828D	FANUC
Working range	X/Y/Z-axis stroke	mm	510/400/350	510/400/350	510/400/350
Working range	Spindle nose to table(standard）	mm	150-500	150-500	150-500
Worktable	Table size	mm	650*400	650*400	650*400
	Max table load	kg	250	250	250
	T-slot size	mm	3-14*125	3-14*125	3-14*125
Spindle	Spindle speed	rpm	24000	24000	24000
	Max Torque	N.m	31.8	32	17.5
	Rated torque	N.m	8.5	8.5	3.5
	Max power	kw	5.5	30	11
	Rated power	kw	3.7	8.0	2.2
Tool change system	Tool shank typeTool Type		BBT30	BBT30	BBT30
	Tool magazine capacity	Pockets	21	21	21
	Tool magazine type		Front servo tool magazine	Front servo tool magazine	Front servo tool magazine
	Max tool diameter	mm	80/100	80/100	80/100
	Max tool length	mm	200	200	200
	Maximum tool weight	kg	3	3	3
Feed	Cutting speed (X/Y/Z)	m/min	30/30/30	30/30/30	30/30/30
	Fast moving speed (X/Y/Z)	m/min	48/48/48	48/48/48	48/48/48
	Positioning accuracy (X/Y/Z)	mm	±0.005	±0.005	±0.005
	Repetitive positioning speed (X/Y/Z)	mm	±0.003	±0.003	±0.003
Mechanical parameters	Mechanical dimensions (including water tank)	mm	155024502300	155024502300	155024502300
Mechanical parameters	Machine weight	kg	2900	2900	2900
