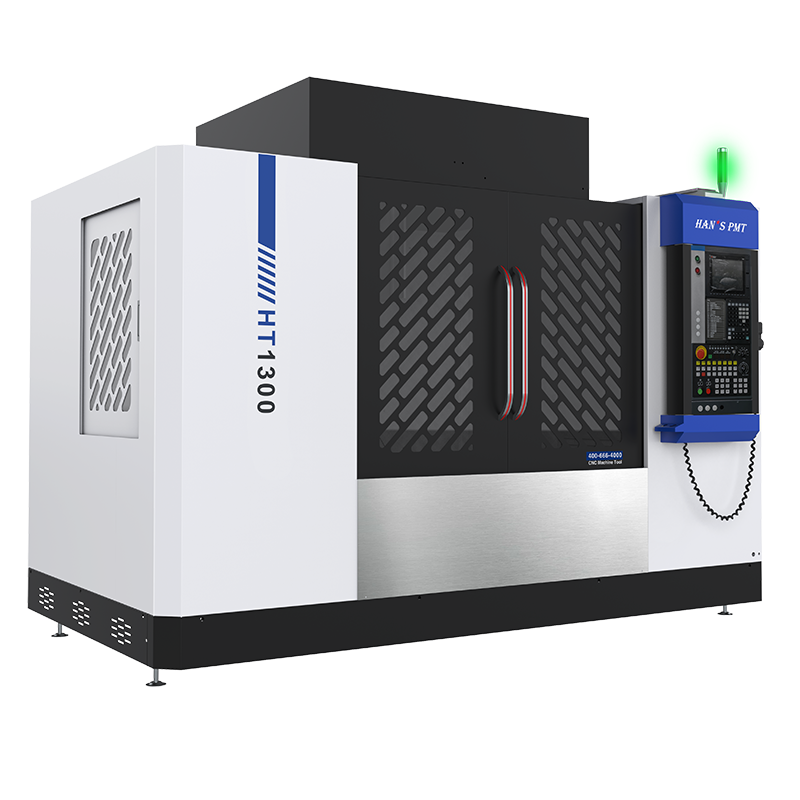

HT1300

Application Industry

Precision drilling and milling processing/3C industry parts processing/New energy vehicle parts processing/Precision mold processing/Medical industry parts processing/Aerospace industry parts processing/Other precision parts processing

Standard configuration

Mitsubishi M80

Front servo tool magazine

Fully enclosed protective cover

Automated central lubrication system

Tool kit

Foundation bolts&pads

Selected configurations

SINUMERIK 828D/FANUC

The 4th axis

Z-axis heightened

Large tool magazine

Wireless probe

Tool breakage detection system

Consultation

Technical Specifications

ltem	Description	Unit	Mitsubishi M80	SINUMERIK828D	FANUC
Working range	X/Y/Z-axis stroke	mm	1300/650/450	1300/650/450	1300/650/450
Working range	Spindle nose to table(standard）	mm	150-600	150-600	150-600
Worktable	Table size	mm	1400*600	1400*600	1400*600
	Max table load	kg	500	500	500
	T-slot size	mm	5-18*100	5-18*100	5-18*100
Spindle	Spindle speed	rpm	20000	20000	20000
	Max Torque	N.m	21	40	28.7
	Rated torque	N.m	14.1	10	11.8
	Max power	kw	5.5	23.6	9
	Rated power	kw	3.7	4.8	3.7
Tool change system	Tool shank typeTool Type		BT30	BT30	BT30
	Tool magazine capacity	Pockets	21	21	21
	Tool magazine type		Front servo tool magazine	Front servo tool magazine	Front servo tool magazine
	Max tool diameter	mm	80/100	80/100	80/100
	Max tool length	mm	200	200	200
	Maximum tool weight	kg	3	3	3
Feed	Cutting speed (X/Y/Z)	m/min	30/30/30	30/30/30	30/30/30
	Fast moving speed (X/Y/Z)	m/min	36/36/36	36/36/36	36/36/36
	Positioning accuracy (X/Y/Z)	mm	±0.01	±0.01	±0.01
	Repetitive positioning speed (X/Y/Z)	mm	±0.006	±0.006	±0.006
Mechanical parameters	Mechanical dimensions (including water tank)	mm	326028502630	326028502630	326028502630
Mechanical parameters	Machine weight	kg	5500	5500	5500
