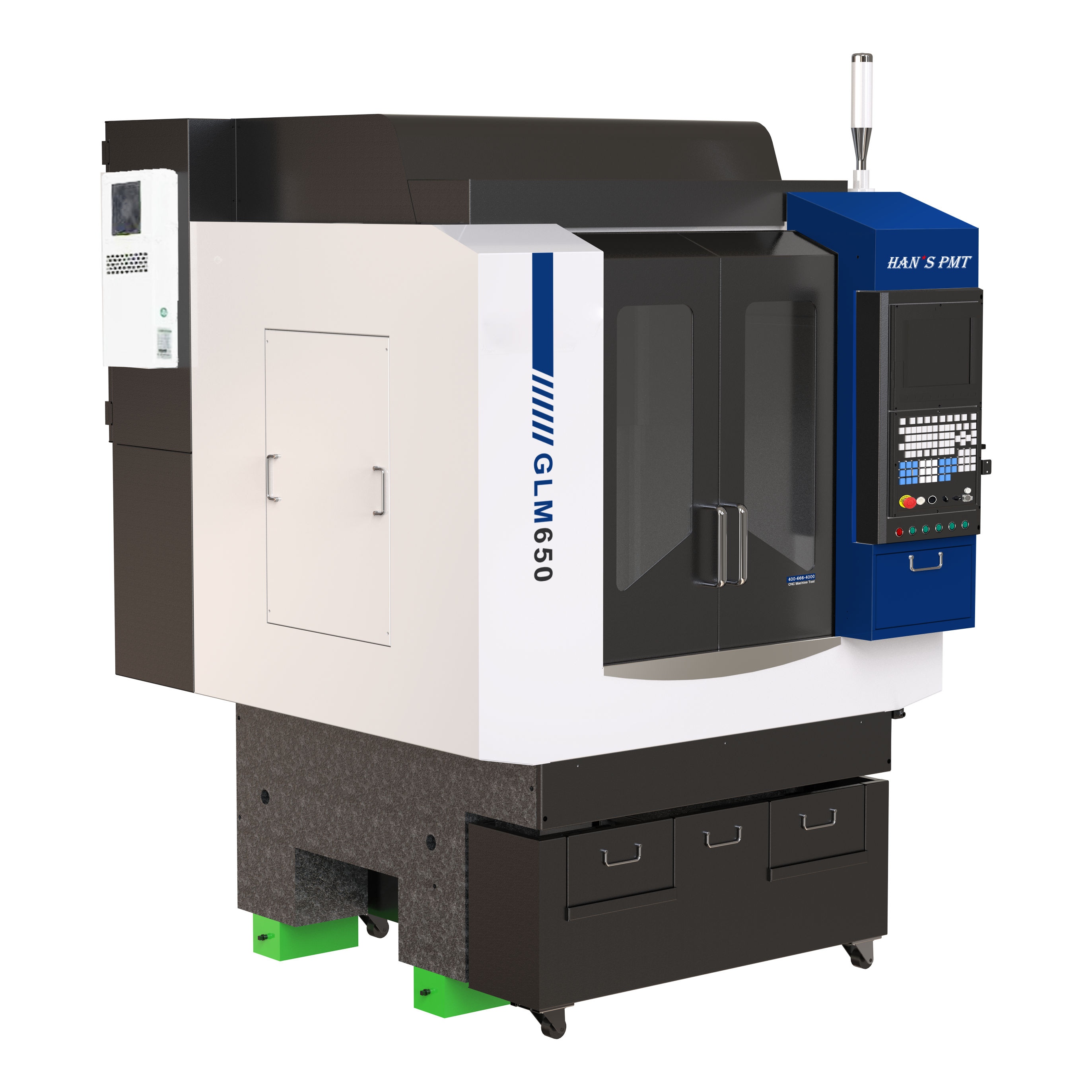

Precision engraving and milling machine
Application Industry
Precision drilling and milling processing/3C industry parts processing/New energy vehicle parts processing/Precision mold processing/Medical industry parts processing/Aerospace industry parts processing/Other precision parts processing
Standard configuration
SYNTEC
Fully enclosed protective cover
Centralized automaticlubrication system
Heat exchanger
Water chiller
Tool setter
Selected configurations
Huazhong CNC system
Linear type tool magazine
Wired probe
The 4th axis
CCD
IS020 Motorized spindle

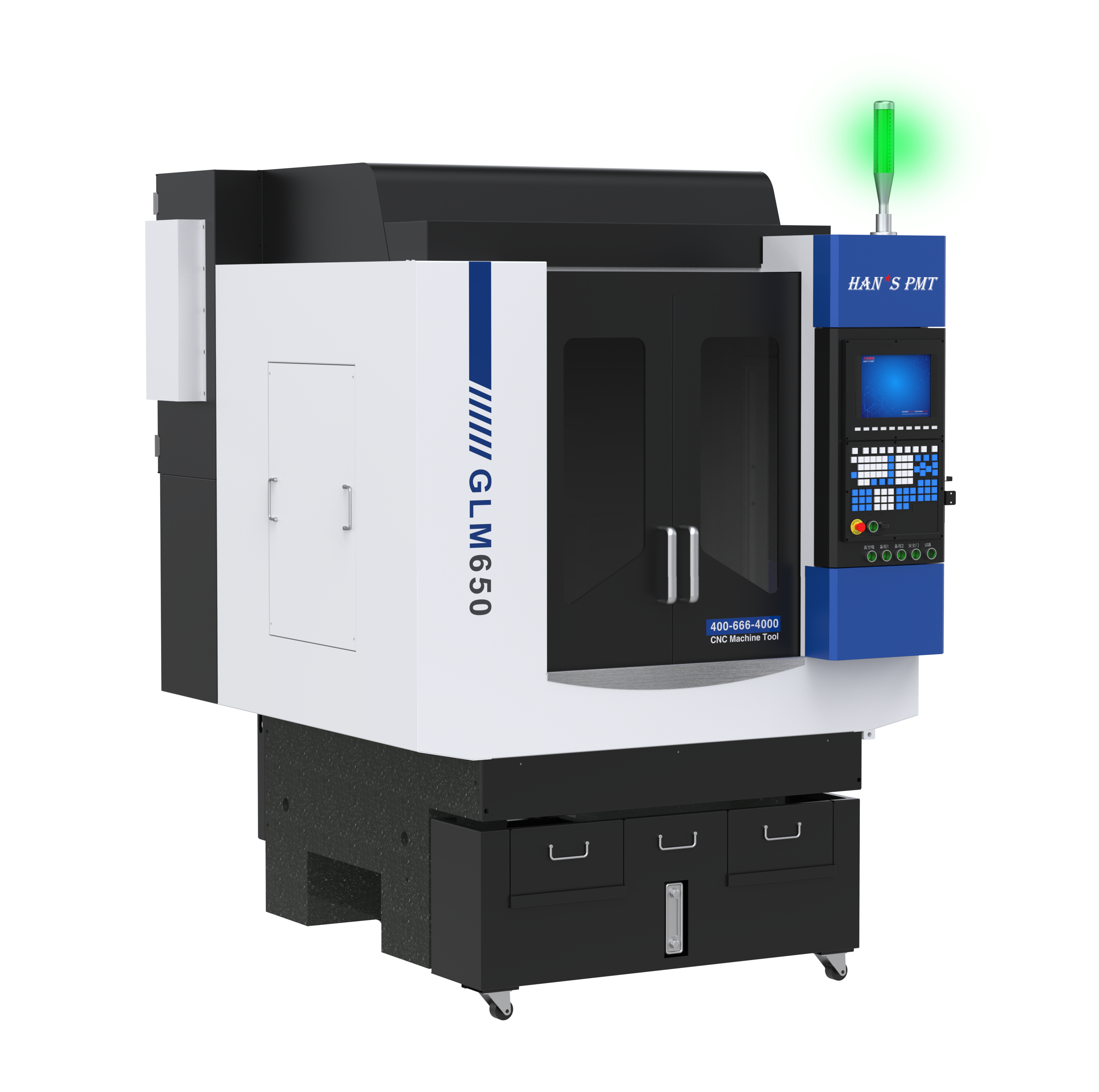

| Item | Description | Unit | GLM650 |
|---|---|---|---|
| Working range | X/Y/Z axis travel | mm | 600/500/150 |
| Distance from spindle nose to worktable (standard type) | mm | 120-270 | |
| Workbenches | Workbench clamping area | mm | 600*500 |
| Payload | kg | 100 | |
| T-slot size | mm | 4-12*125 | |
| Spindle | Spindle Type | Motorized spindle | |
| Spindle speed | rpm | 60000 | |
| Rated torque | N.m | 0.39 | |
| Rated power | kW | 2.5 | |
| Tool changing system | Tool Type | T11 | |
| Number of cutting tools | Pockets | 6 | |
| Type of knife magazine | Linear type tool magazine | ||
| Maximum tool diameter | mm | 30 | |
| Maximum tool length | mm | 60 | |
| Maximum tool weight | kg | 0.5 | |
| Feed | Cutting speed (X/Y/Z) | m/min | 10/10/10 |
| Fast moving speed (X/Y/Z) | m/min | 15/15/15 | |
| Positioning accuracy (X/Y/Z) | mm | 0.008 | |
| Repetitive positioning speed (X/Y/Z) | mm | 0.005 | |
| Mechanical parameters | Mechanical dimensions (including water tank) | mm | 1550*1720*2260 |
| Equipment weight | kg | 2300 |
