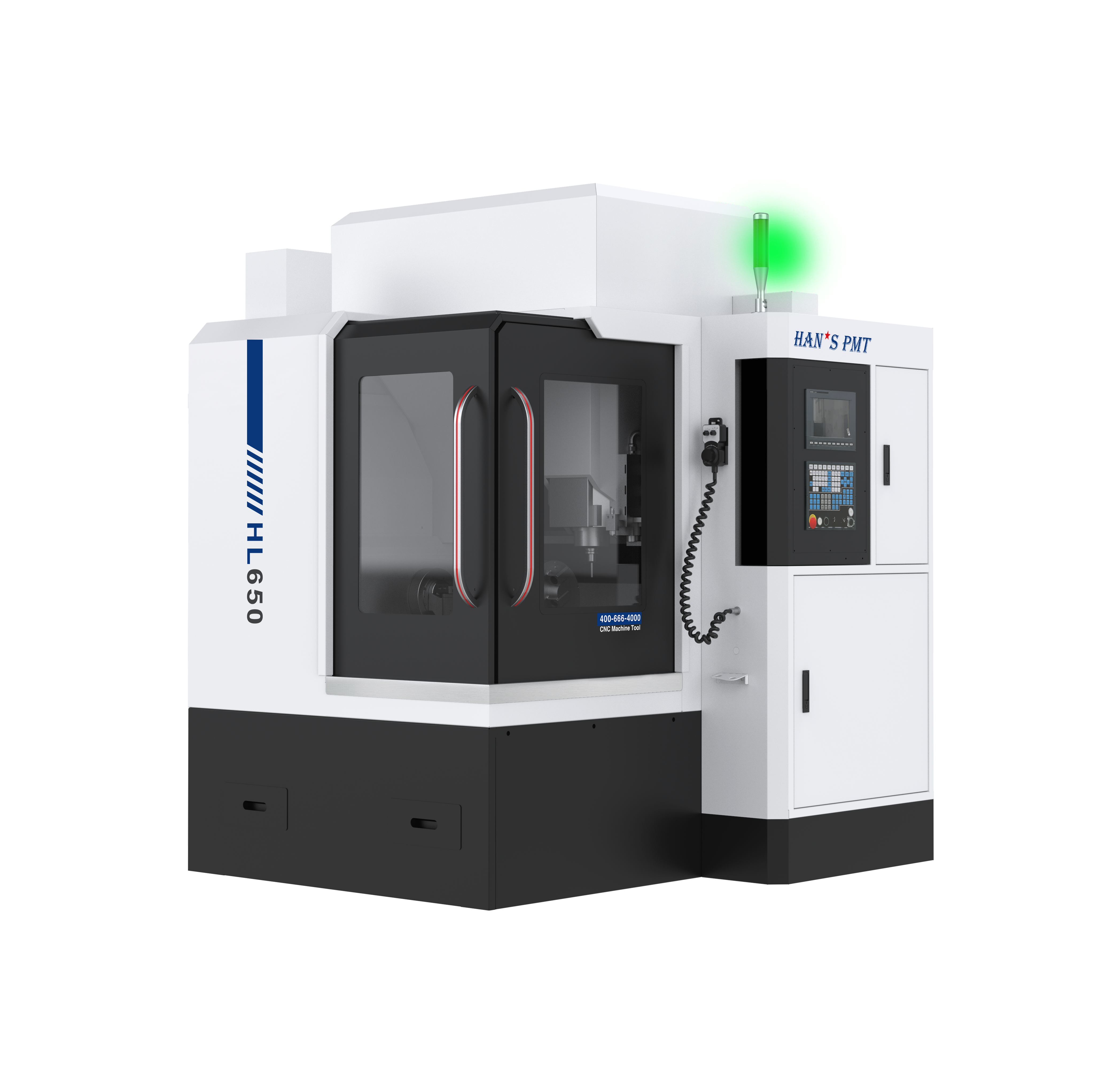

Precision engraving and milling machine
Application Industry
Precision drilling and milling processing/3C industry parts processing/New energy vehicle parts processing/Precision mold processing/Medical industry parts processing/Aerospace industry parts processing/Other precision parts processing
Standard configuration
SYNTEC
Half-umbrella type servo tool magazine
Fully enclosed protective cover
Centralized automaticlubrication system
Heat exchanger
Water chiller
Tool setter
Selected configurations
Huazhong CNC system
Wireless probe
CCD
HSK-E40 Motorized spindle
| ltem | Description | Unit | HL650 |
|---|---|---|---|
| Working range | X/Y/Z axis travel | mm | 600/500/250 |
| Distance from spindle nose to worktable (standard type) | mm | 120-370 | |
| Workbenches | Workbench clamping area | mm | 600*500 |
| Payload | kg | 300 | |
| T-slot size | mm | 5-18*100 | |
| Spindle | Spindle Type | Motorized spindle | |
| Spindle speed | rpm | 40000 | |
| Rated torque | N.m | 2.7 | |
| Rated power | kW | 6 | |
| Tool changing system | Tool Type | HSK-E32 | |
| Number of cutting tools | Pockets | 12 | |
| Type of knife magazine | Half-umbrella type servo tool magazine | ||
| Maximum tool diameter | mm | 80 | |
| Maximum tool length | mm | 100 | |
| Maximum tool weight | kg | 1 | |
| Feed | Cutting speed (X/Y/Z) | m/min | 10/10/10 |
| Fast moving speed (X/Y/Z) | m/min | 15/15/15 | |
| Positioning accuracy (X/Y/Z) | mm | 0.08 | |
| Repetitive positioning speed (X/Y/Z) | mm | 0.05 | |
| Mechanical parameters | Mechanical dimensions (including water tank) | mm | 2190*1950*2400 |
| Equipment weight | kg | 3500 |
