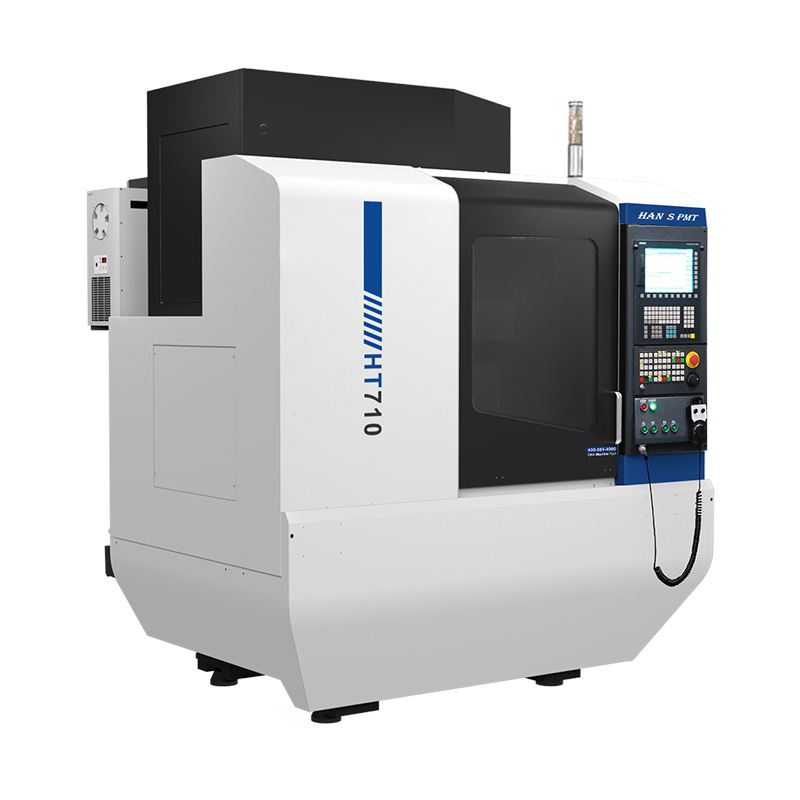

HT710

Application Industry

Precision drilling and milling processing/3C industry parts processing/New energy vehicle parts processing/Precision mold processing/Medical industry parts processing/Aerospace industry parts processing/Other precision parts processing

Standard configuration

SINUMERIK828D

Arm type tool magazine

Fully enclosed protective cover

Centralized automatic lubrication system

Electric cabinet air conditioning

Tool kit

Foundation bolts&pads

Oil cooler of spindle

Selected configurations

Mitsubishi M80 /FANUC

The 4th axis/Z-axis heightened

Automatic door

Coolant through spindle system(CTS)

Toolsetter

Tool breakage detection system

Consultation

Technical Specifications

ltem	Description	Unit	SINUMERIK 828D	Mitsubishi M80	FANUC
Working range	X/Y/Z axis travel	mm	710/440/380	710/440/380	710/440/380
Working range	Distance from spindle nose to worktable (standard type)	mm	150-530	150-530	150-530
Worktable	Workbench clamping area	mm	870*450	870*450	870*450
	Payload	kg	300	300	300
	T-slot size	mm	3-14*125	3-14*125	3-14*125
Spindle	Spindle transmission mode		Direct connection	Direct connection	Direct connection
	Spindle speed	rpm	20000	20000	20000
	Maximum Torque	N.m	40	21	28.7
	Rated torque	N.m	10	14.1	11.8
	Maximum power	kW	23.6	5.5	9
	Rated power	kW	4.8	3.7	3.7
Tool changing system	Tool Type		BT30	BT30	BT30
	Number of cutting tools	Pockets	20	20	20
	Type of knife magazine		Knife arm type knife magazine	Knife arm type knife magazine	Knife arm type knife magazine
	Maximum tool diameter	mm	60/100	60/100	60/100
	Maximum tool length	mm	250	250	250
	Maximum tool weight	kg	3	3	3
Feed	Cutting speed (X/Y/Z)	m/min	30/30/30	30/30/30	30/30/30
	Fast moving speed (X/Y/Z)	m/min	48/48/48	48/48/48	48/48/48
	Positioning accuracy (X/Y/Z)	mm	±0.005	±0.005	±0.005
	Repetitive positioning speed (X/Y/Z)	mm	±0.003	±0.003	±0.003
Mechanical parameters	Mechanical dimensions (including water tank)	mm	187025002200	187025002200	187025002200
Mechanical parameters	Equipment weight	kg	2890	2890	2890
