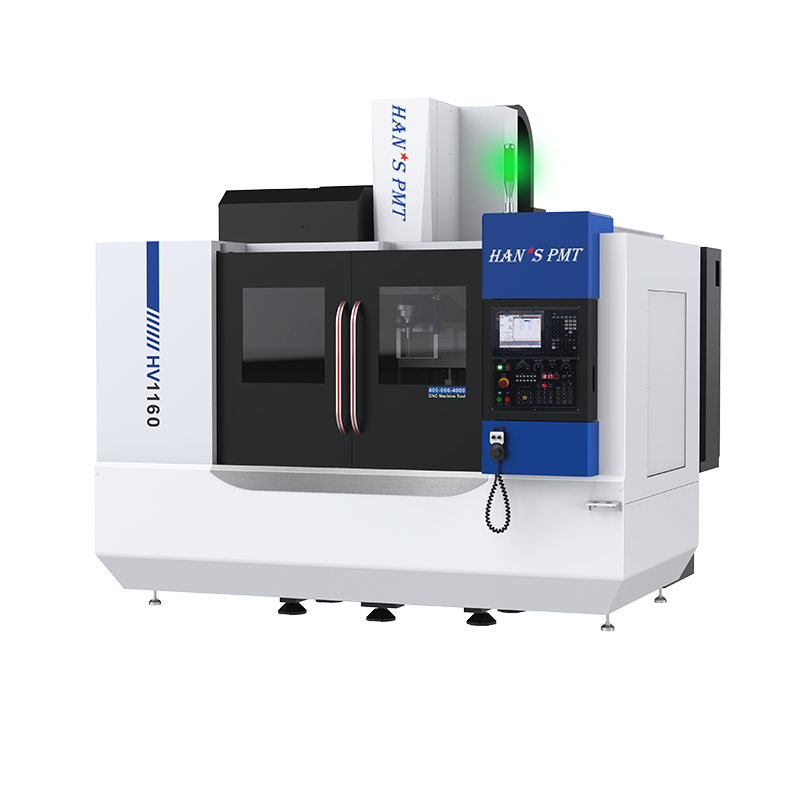

HV1160

Application Industry

Precision drilling and milling processing/3C industry parts processing/new energy vehicle parts processing/precision mold processing/medical industry parts processing/aerospace industry parts processing/other precision parts processing

Standard configuration

Mitsubishi M80

Arm type tool magazine

Fully enclosed protective cover

Centralized automaticlubrication system

Air gun

Tool kit

Foundation bolts&pads

Selected configurations

SINUMERIK828D /FANUC

The 4th axis

Coolant through spindle system(CTS)

Tool setter

RENISHAW probe

Tool breakage detection system

Oil cooler of spindle

Consultation

Technical Specifications

ltem	Description	Unit	Mitsubishi M80	SINUMERIK 828D	FANUC
Working range	X/Y/Z axis travel	mm	1100/600/600	1100/600/600	1100/600/600
Working range	Distance from spindle nose to worktable (standard type)	mm	100-700	100-700	100-700
Worktable	Workbench clamping area	mm	1200*550	1200*550	1200*550
	Payload	kg	800	800	800
	T-slot size	mm	5-18*100	5-18*100	5-18*100
Worktable	Spindle transmission mode		Direct connection	Direct connection	Direct connection
	Spindle speed	rpm	12000	12000	12000
	Maximum Torque	N.m	118	135	118
	Rated torque	N.m	52.5	57	52.5
	maximum power	kW	18.5	21.2	18.5
	rated power	kW	11	9	11
Tool changing system	Tool Type		BT40	BT40	BT40
	Number of cutting tools	Pockets	24	24	24
	Type of knife magazine		Knife arm type knife magazine	Knife arm type knife magazine	Knife arm type knife magazine
	Maximum tool diameter	mm	80/160	80/160	80/160
	Maximum tool length	mm	300	300	300
	Maximum tool weight	kg	8	8	8
Feed	Cutting speed (X/Y/Z)	m/min	20/20/20	20/20/20	20/20/20
	Fast moving speed (X/Y/Z)	m/min	36/36/36	36/36/36	36/36/36
	Positioning accuracy (X/Y/Z)	mm	±0.01	±0.01	±0.01
	Repetitive positioning speed (X/Y/Z)	mm	±0.008	±0.008	±0.008
Mechanical parameters	Mechanical dimensions (including water tank)	mm	295032153060	295032153060	295032153060
Mechanical parameters	Equipment weight	kg	6100	6100	6100
