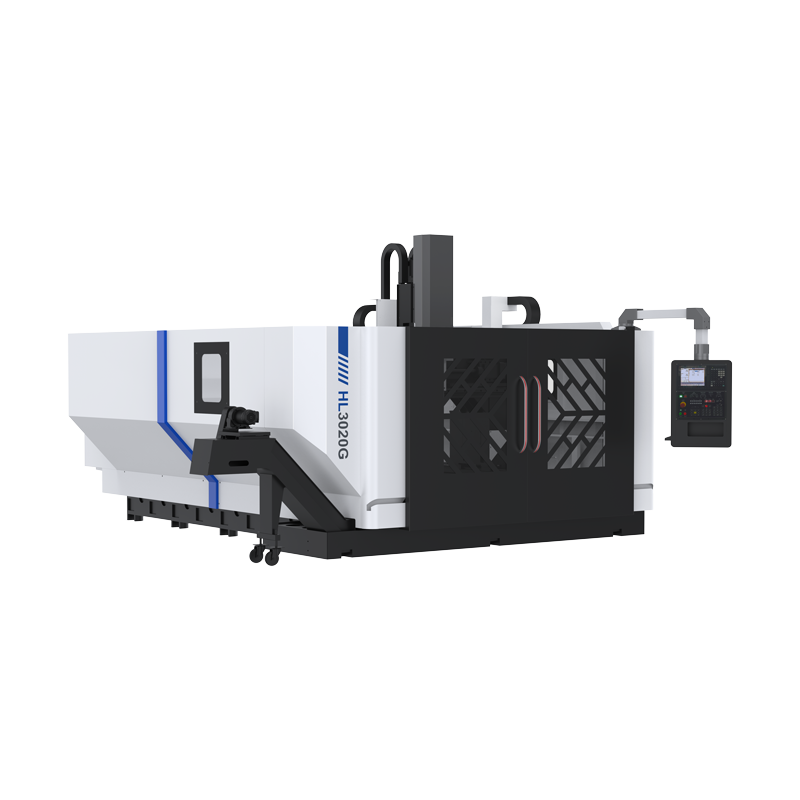

Gantry machining center
Application Industry
Can be widely used for machining of products in the fields of ,automation equipment,mold,medical,electronic,mechanical,automotive,shipping
Standard configuration
Mitsubishi M80
Arm type tool magazine
Semi enclosed protective cover
Centralized automaticlubrication system
Heat exchanger
Tool kit
Foundation bolts&pads
Screw type chip conveyor
Link type chip conveyor + protable chip bucket
Optional configurations
SINUMERIK828D /FANUC
The 4th axis
Side milling head
Front servo tool magazine
Tool setter
RENISHAW probe
Tool breakage detection system
Oil cooler of spindle
Five axis head
| Item | Description | Unit | HL3020G |
|---|---|---|---|
| Working range | X/Y/Z axis travel | mm | 3000/2000/500 |
| Spindle nose to table(standard) | mm | 150-650 | |
| Gantry width | mm | 2100 | |
| Worktable | Table size | mm | 3200*2000 |
| Max table load | kg | 3000 | |
| T-slot size | mm | 9-22*200 | |
| Spindle | Spindle drive mode | Direct drive | |
| Spindle speed | rpm | 12000 | |
| Max torque | N.m | 95.5 | |
| Rated torque | N.m | 35.8 | |
| Max power | kW | 15 | |
| Rated power | kW | 7.5 | |
| Tool change system | Tool shank type | BT40 | |
| Tool magazine capacity | Pockets | 24 | |
| Tool magazine type | Arm type | ||
| Max tool diameter | mm | 80/150 | |
| Max tool length | mm | 350 | |
| Max tool weight | kg | 8 | |
| Feed | Cutting feed speed (X/Y/Z) | m/min | 20/20/20 |
| Rapid traverse(X/Y/Z) | m/min | 40/32/32 | |
| Positioning accuracy (X/Y/Z) | mm | 0.03 | |
| Repeatability(X/Y/Z） | mm | 0.015 | |
| Mechanical parameters | Machine dimensions | mm | 5575*5540*3020 |
| Machine weight | kg | 13500 |
