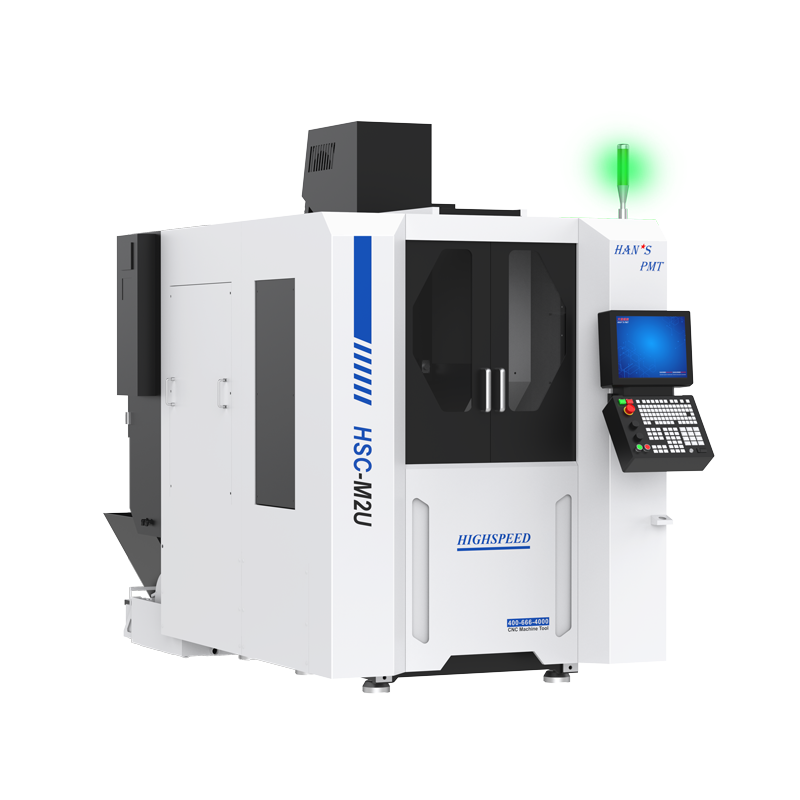

Five axis machining center
Application Industry
Mold manufacturing/New energy vehicle industry/High precision medical equipment/Precision machinery manufacturing/Precision hardware/Aerospace parts processing/Other precision parts processing
Standard configuration
HNC-848Di CNC
High speed motorized spindle
Oil-cooled 3-axis servo motor base
Oil-cooled 3-axis hollow screw
Tool setter
Servo chain too magazine
Row cutting machine
Selected configurations
Wireless probe
Oil mist recovery machine
Datum sphere
Five axis post-processing
| Item | Description | Unit | M2U |
|---|---|---|---|
| Working range | X/Y/Z axis travel | mm | 400/400/400 |
| B/C axis rotation angle | ° | +120°/360° | |
| Rotary worktable | Workbench panel size | mm | φ260 |
| Workbench clamping area | mm | φ260*250 | |
| Maximum workload | kg | 50 | |
| Drive mode | type | DDR | |
| Spindle | Spindle drive mode | type | Built-in directly-connected spindle |
| Spindle cone hole type | type | BBT30 | |
| Maximum RPM | rpm | 26000 | |
| Rated torque | N.m | 8.7 | |
| rated power | kw | 11 | |
| Tool changing system | Number of cutting tools | Pockets | 32(24*) |
| Type of knife magazine | type | Chain servo tool magazine | |
| Maximum tool length | mm | 190 | |
| Feed | Cutting speed (X/Y/Z) | m/min | 20/20/20 |
| Cutting speed (B/C) | rpm | 60/50 | |
| Fast moving speed (X/Y/Z) | m/min | 30/30/24 | |
| Fast moving speed (B/C) | rpm | 120/100 | |
| Positioning accuracy (X/Y/Z) | mm | 0.004 | |
| Positioning accuracy (B/C) | second | 20 | |
| Repetitive accuracy (X/Y/Z) | mm | 0.003 | |
| Repetitive accuracy (B/C) | second | ±4 | |
| Mechanical parameters | Mechanical length * width * height (including chip conveyor) | mm | 3750*1600*2525 |
| Mechanical weight | kg | 4200 |
